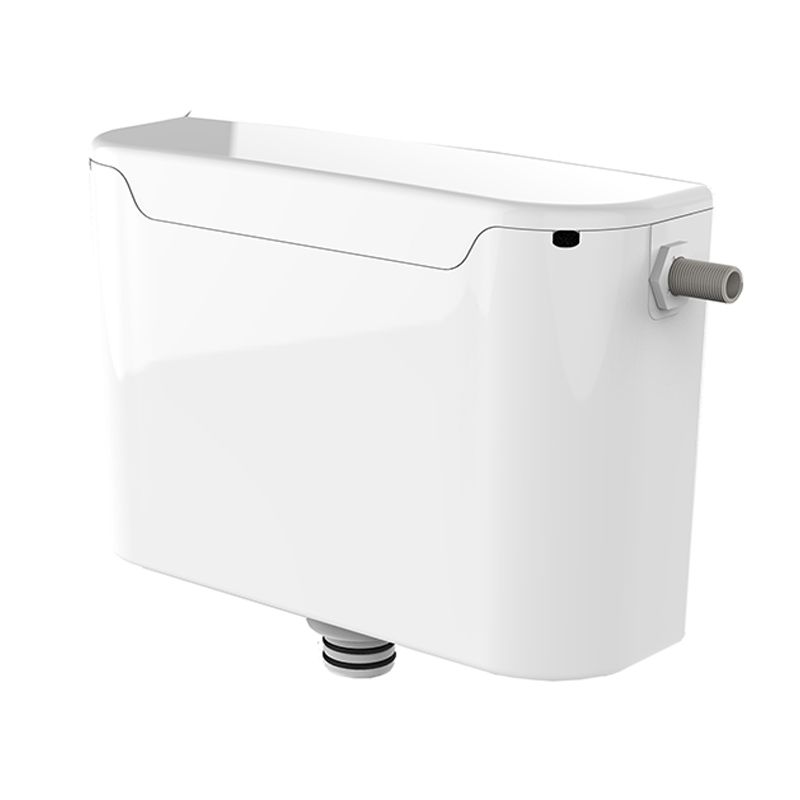

Dudley Miniflo™

High quality compact concealed toilet cistern. Designed to fit into smaller spaces.

Code333996

Overview

Thomas Dudley manufactures a market-leading range of high-quality concealed cisterns. These are perfect for use in all domestic and commercial applications and can be used with confidence in fitted furniture or behind tiles and most partitioning materials. A vast range of pushbuttons, push plates, levers and touch-free electronic sensors is available to provide the perfect finishing touch to any project. The Miniflo™ is ideal for use behind tiles and partitioning and in most other concealed applications. Available in multiple specifications. Please contact us for more information.





Brochure

Features

  • 411mm [W] x 276mm [H] x 131mm [D]
  • Supplied factory assembled
  • Top Access
  • Air tubes enable button, plate or sensor to be installed up to 250mm away from cistern
  • Compact dimensions enables the Dudley Miniflo to fit neatly into 150mm ducts
  • Internal overflow warning
  • Fitted with Hydroflo Side Inlet
  • Fitted with Niagara Pneumatic Valve
  • Other Options Available: Bottom Inlet, Single Flush, Other Buttons and Plates, Electrolfo.
  • For other variations please contact us
  • Stock Item - Available for next working day dispatch

For Specifiers

Classic Confidence: Proven Performance in Every Space

Thomas Dudley’s range of high-quality concealed cisterns represents the gold standard for classic modern design, delivering seamless integration across domestic and commercial applications. Engineered for total reliability, these cisterns provide a “fit-and-forget” solution for installations within fitted furniture, behind walls, or within most partitioning materials.

Efficiency Without Compromise

We recognise that a specifier’s priority is to reduce project timeframes and minimise on-site costs. Thomas Dudley concealed cisterns are specifically designed to address these needs, featuring intuitive designs that significantly accelerate installation and simplify long-term servicing.

Sustainable Value

By integrating proven water-saving technologies as standard, our cisterns allow specifiers to offer clients tangible reductions in utility costs and environmental impact. With Thomas Dudley, you can specify with total confidence, knowing you are delivering a cost-effective, durable, and highly efficient solution that enhances any modern architectural vision.

A vast range of pushbuttons, push plates, levers and touch-free electronic sensors are also available to provide the perfect finishing touch to any project. Click Here to view Range



Frequently asked questions

We offer a range of push buttons and push plates, most of which are compatible with the Vantage & Miniflo cisterns

Yes you can. We can supply a upgrade kit to convert a button operated Vantage / Miniflo cistern to be able to be used with our Electroflo infrared non-touch operation. Battery operated version part number 326095. Mains electrical operation part number 326096

Yes you can. You would need to replace the single flush Niagara pneumatic flushing valve with a dual flush Niagara pneumatic flushing falve (part no. 327628), and then replace the single flush button with one of our range of push buttons or push plates.

Yes you can. In order to convert the cistern to a single flush, you would need to replace the dual flush button with one of our single flush buttons. Most of our dual flush buttons has a single flush equivalent. Connect the clear / white pneumatic tube (full flush) from the dual flush button to the back of the single flush button. Discard the green pneumatic tube (reduced flush). If replacing the Niagara flush valve, connect the clear / white tube from the single flush push button to the full flush side of the Niagara flushing valve. Identified by the full circle symbol below the connecting spigot on the valve.
